In the intricate tapestry of modern manufacturing, construction, and even quotidian domestic life, certain innovations operate with such pervasive efficacy that their true value often goes unheralded. Among these unsung heroes, double-coated tape stands as a paragon of adhesive versatility. Far more than a mere strip of stickiness, this engineered marvel serves as an unseen architect, facilitating connections, securing assemblies, and streamlining processes across an astonishing spectrum of industries. At SHANGHAI NEWERA VISCID PRODUCTS CO., LTD, we delve into the profound utility of this ubiquitous bonding solution, exploring its diverse applications and demystifying its adhesive prowess.
What Delineates Double-Coated Tape?
Before we embark on an exhaustive exploration of its applications, it is imperative to comprehend the fundamental construct of double-coated tape. Unlike its single-sided counterpart, which features adhesive on only one surface, double-coated tape is characterized by a carrier material (such as film, foam, tissue, or non-woven fabric) coated on both sides with a pressure-sensitive adhesive. This adhesive layer is typically protected by a release liner, which is peeled away prior to application. This dual-sided adhesive capability is precisely what imbues it with its extraordinary capacity for bonding two disparate surfaces, often with a clean, invisible finish that mechanical fasteners simply cannot achieve. The choice of carrier, adhesive chemistry (acrylic, rubber, silicone), and liner material are meticulously calibrated to optimize performance for specific environmental conditions and substrate proclivities.
The Pervasive Utility: What is Double-Coated Tape Used For?
The applications of double-coated tape are as varied as the materials it can bond. Its ability to create a secure, often permanent, attachment without visible fasteners makes it an invaluable asset in countless scenarios.
1. Mounting and General Assembly
Perhaps the most intuitive application, double-coated tape excels in mounting and general assembly tasks where a strong, immediate bond is required. From affixing signage and decorative trim to securing mirror tiles and picture frames, its high initial tack and robust shear strength provide reliable adherence. In retail environments, it's indispensable for point-of-purchase displays, ensuring promotional materials remain steadfast. For a closer look at versatile adhesive solutions, explore our range of Double-Sided Gum Tape.
2. Flooring and Carpet Installation
One of the most demanding environments for any adhesive is flooring, particularly carpet installation. Double-coated tape offers a clean, efficient, and often less disruptive alternative to traditional adhesives. It provides a secure, non-slip bond between the carpet backing and the subfloor, preventing shifting, buckling, and tripping hazards. Its ability to adhere firmly without leaving messy residues upon removal (in certain formulations) is a significant advantage, especially in temporary installations or event spaces. Discover our specialized solution for this purpose: Strong Sticky No Residual Double-Sided Carpet Tape.
3. Automotive Sector
The automotive industry is a prime beneficiary of double-coated tape's advanced bonding capabilities. Here, it is employed for a multitude of critical applications:
• Trim and Emblem Attachment: Securing exterior and interior trim, emblems, and badging. Its conformability allows for seamless integration with contoured surfaces.
• Wire Harness Bundling: Keeping electrical wiring neatly organized and secured within the vehicle's chassis.
• Sound Damping: Attaching sound-deadening materials to vehicle panels, contributing to a quieter cabin.
• Mirror Assembly: Bonding rearview mirrors to windshields.
The tapes used in this sector often exhibit exceptional resistance to temperature fluctuations, UV radiation, and vibrations, ensuring long-term durability.
4. Electronics Assembly
In the realm of electronics, precision and thinness are paramount. Double-coated tapes are indispensable for:
• Component Mounting: Securing delicate components like LCD screens, batteries, and circuit boards within compact devices such as smartphones, tablets, and laptops.
• Gasket and Seal Attachment: Creating dust and moisture seals for electronic enclosures.
• Heat Sink Attachment: Bonding heat sinks to processors for thermal management.
The tapes here are often ultra-thin, electrically non-conductive, and possess high dielectric strength, preventing interference with sensitive circuitry.
5. Printing and Paper Industries
The printing and paper converting industries rely heavily on double-coated tapes for various processes:
• Splicing: Creating seamless splices in paper, film, and foil webs during high-speed printing and converting operations, minimizing downtime.
• Core Starting: Securing the beginning of a web to a new core.
• Plate Mounting: Attaching printing plates to cylinders in flexographic and gravure printing.
• Envelope and Packaging Closure: Providing secure, tamper-evident seals for envelopes and various packaging solutions.
6. Crafts, Arts, and DIY Projects

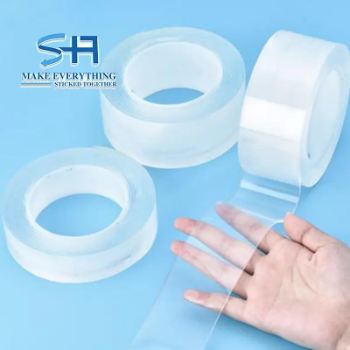

For the hobbyist, artist, or DIY enthusiast, double-coated tape offers unparalleled convenience and precision. It's perfect for scrapbooking, card making, fabric appliqué, and creating intricate models. Its clean application eliminates the mess associated with liquid glues, and its immediate bond allows for rapid progress on projects. The Magic Nano Tape exemplifies a type of double-sided tape that has found immense popularity in these creative and household applications due to its reusability and strong grip.
7. Specialty and Industrial Applications
Beyond these broad categories, double-coated tapes serve highly specialized roles:
• Medical Devices: Bonding components in wearable medical devices, diagnostic equipment, and surgical drapes, often requiring biocompatible adhesives.

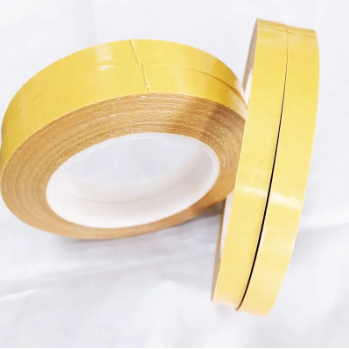

• Construction: Sealing and bonding in window and door frame assembly, insulation attachment, and vapor barrier installation. Our Double-Sided Filament Tape for Door and Window Sealing Strip Bonding is a testament to this specialized utility.
• Signage and Displays: Permanent or temporary mounting of large format graphics, banners, and exhibition stands.
• Textile and Leather Industries: Hemming, seaming, and temporary positioning of fabrics before stitching.
The Adhesive Conundrum: What Will Double-Sided Tape Not Stick To?
While double-coated tape boasts remarkable adhesive capabilities, it is not a panacea for all bonding challenges. Understanding the limitations is crucial for successful application. Certain surfaces present significant hurdles to effective adhesion due to their inherent properties.
1. Low Surface Energy (LSE) Plastics
This is perhaps the most common adversary for many adhesives. Plastics like polyethylene (PE), polypropylene (PP), and polytetrafluoroethylene (PTFE, commonly known as Teflon) possess very low surface energy. This means their molecular structure provides minimal "wetting" by the adhesive, preventing the tape from spreading out and forming sufficient contact points. The adhesive essentially beads up on the surface, leading to a weak, ephemeral bond. Specialized tapes with high-tack acrylic adhesives or primers are often required to achieve any meaningful adhesion to these challenging substrates.
2. Heavily Textured or Porous Surfaces
While some double-coated foam tapes can conform to minor irregularities, extremely rough or porous surfaces (like unfinished wood, certain fabrics, or crumbly concrete) can be problematic. The adhesive may not be able to fill all the voids and irregularities, leading to insufficient contact area and a compromised bond. In such cases, a thicker adhesive layer, a highly conformable foam carrier, or a pre-treatment to smooth/seal the surface might be necessary.
3. Dusty, Oily, or Contaminated Surfaces
This is less about the substrate itself and more about improper surface preparation. Any foreign matter—dust, dirt, grease, oil, mold release agents, or even fingerprints—will act as a barrier between the adhesive and the substrate, preventing the formation of a direct, strong bond. Adhesion will be severely compromised, leading to premature failure. Thorough cleaning with appropriate solvents is always a prerequisite for optimal performance.
4. Wet or Damp Surfaces
Most pressure-sensitive adhesives are designed for dry application. Water on the surface can interfere with the adhesive's ability to wet out and create molecular attraction. While some tapes are engineered for moisture resistance after bonding, initial application on a wet surface will almost invariably result in poor adhesion.
5. Surfaces with High Plasticizer Migration
Certain flexible plastics, particularly PVC (polyvinyl chloride), contain plasticizers that can migrate out of the material over time. These plasticizers can soften the adhesive layer, significantly reducing its tack and shear strength, leading to bond degradation. Specialized plasticizer-resistant adhesives are formulated to counteract this phenomenon.
The Unseen Advantages of Double-Coated Tape
Beyond its sheer versatility, double-coated tape offers a compelling array of advantages that underscore its growing prominence:
• Invisible Bonding: It creates a clean, aesthetically pleasing bond without visible fasteners, holes, or welds.
• Stress Distribution: Unlike point fasteners, tape distributes stress over the entire bonded area, reducing stress concentrations and improving structural integrity.
• Vibration Damping: The viscoelastic nature of many tape adhesives helps to absorb and dampen vibrations, reducing noise and fatigue.
• Sealing Properties: Many tapes offer excellent sealing against dust, moisture, and even certain chemicals.
• Ease of Application: Relatively simple to apply, requiring minimal tools and skilled labor, leading to faster assembly times.
• Weight Reduction: Eliminates the need for heavier mechanical fasteners, contributing to overall weight reduction in assemblies.
• Thermal Expansion Accommodation: The inherent flexibility of the adhesive layer can accommodate differential thermal expansion between dissimilar materials, preventing warping or delamination.
SHANGHAI NEWERA VISCID PRODUCTS CO., LTD: Your Partner in Adhesive Innovation
At SHANGHAI NEWERA VISCID PRODUCTS CO., LTD, we pride ourselves on being at the vanguard of adhesive technology. Our comprehensive portfolio of double-coated tapes is meticulously engineered to meet the exacting demands of diverse industries. From high-performance solutions for automotive and electronics to versatile options for construction and consumer goods, our products are synonymous with reliability and innovation. We understand that each application presents a unique set of challenges, and our expertise lies in providing tailored adhesive solutions that transcend conventional expectations.

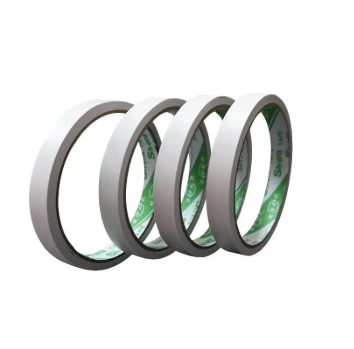

Whether you require a robust bond for heavy-duty applications or a delicate touch for sensitive materials, our range of double-coated tapes, including our specialized Double-Sided Gum Tape, the resilient Strong Sticky No Residual Double-Sided Carpet Tape, the innovative Magic Nano Tape, and the purpose-built Double-Sided Filament Tape for Door and Window Sealing Strip Bonding, is designed to deliver superior performance.
Choosing the Right Double-Coated Tape
Selecting the optimal double-coated tape necessitates a thorough understanding of several critical factors:
• Substrate Compatibility: What materials are being bonded? Their surface energy, texture, and composition are paramount.
• Environmental Conditions: Will the bond be exposed to extreme temperatures, moisture, UV light, or chemicals?
• Stress and Load: What kind of forces will the bond endure (shear, peel, tensile)?
• Application Method: Manual or automated application?
• Desired Permanence: Is a permanent bond required, or is clean removability a priority?
Our team of adhesive specialists is always prepared to provide expert guidance, ensuring you select the perfect double-coated tape solution for your specific requirements.
Conclusion: The Indispensable Bond
The question "What is double coated tape used for?" elicits a response that underscores its profound and ever-expanding role in modern engineering and daily life. From the macroscopic scale of construction to the microscopic precision of electronics, this ingenious adhesive solution provides a clean, robust, and often invisible bond that empowers innovation and enhances efficiency. Its ability to overcome traditional fastening challenges, coupled with its myriad advantages, cements its status as an indispensable component in countless industries. As technology advances and new materials emerge, the versatility and efficacy of double-coated tape will undoubtedly continue to evolve, solidifying its position as the unseen architect of connection.
Post time: May-08-2025
