In the field of electromagnetic compatibility (EMC) engineering, metal shielding materials can generally be divided into two major categories: rigid metal shielding enclosures and flexible shielding materials. Rigid metal shielding covers provide excellent protection, but they often involve high tooling costs and long modification cycles. For projects characterized by rapid product iterations, multiple models, small production runs, or limited internal space, flexible metal shielding materials offer an important alternative.
Conductive copper foil tape is a flexible metal shielding solution that uses high-purity copper foil as the carrier material and combines it with a pressure-sensitive adhesive system to provide shielding, grounding, and conformable bonding in one product. It is widely used across electronics and electrical applications, RF communication, gardening protection, and other fields.
A common mistake among purchasing and R&D professionals is to focus solely on datasheet parameters such as electrical resistance and peel adhesion while overlooking the actual differences caused by substrate quality, lamination processes, and storage conditions. Even when products are all marketed as conductive copper foil tape, factors such as copper foil grain structure, adhesive coating technology, and release liner selection can ultimately affect the long-term performance of the finished equipment.
With nearly 30 years of experience in electronic shielding adhesive materials, Shanghai Newera goes beyond simple finished-roll converting and extends quality control upstream to the selection and inspection of raw materials.
The factory has dedicated incoming inspection stations to verify each batch of copper foil, adhesive, and release liner before production. Its independent physical and chemical laboratory conducts testing for copper foil elongation, adhesive aging resistance, environmental simulation, and other key properties.
Modern clean coating, slitting, and die-cutting production lines provide precise control over web tension during the lamination and converting processes, helping prevent copper foil stretching, wrinkling, and blistering.
Shanghai Newera is ISO 9001 certified, and its products have obtained RoHS, REACH, SGS, and other international compliance certifications. The company supports customized specifications and OEM services, with products exported to more than 80 countries and regions worldwide.
1. Single-Conductive vs. Double-Conductive Structures: Select Based on the Application
Product selection should not be based simply on the principle that “lower electrical resistance is always better.” Instead, the conductive structure should match the actual electrical design requirements of the product.

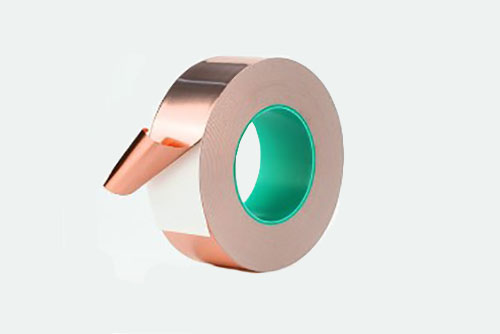

Single-Conductive Copper Foil Tape
For single-conductive copper foil tape, electrical conductivity is provided through the copper foil surface, while the adhesive side remains non-conductive.
It is suitable for:
- Shielding electronic housings
- Surface shielding of components
- Applications where an additional conductive path through the adhesive is not required
- Designs where the risk of unintended electrical short circuits needs to be minimized
When electrical continuity is required, the connection is established through direct contact between the conductive copper foil surfaces.
Single-conductive copper foil tape offers a cost-effective solution and is a common choice for consumer electronics applications.
Double-Conductive Copper Foil Tape
Double-conductive copper foil tape incorporates conductive particles into the adhesive layer, allowing both the copper foil and adhesive surface to conduct electricity. This creates Z-axis electrical conductivity through the adhesive layer.
It is suitable for applications where the adhesive itself needs to establish electrical continuity after bonding, including:
- Component-to-component grounding
- Overlapping grounding connections
- Reinforcement of gaps in RF shielding enclosures
- Applications requiring conductive bonding between different surfaces
During assembly, appropriate process controls are required to prevent conductive adhesive from coming into contact with surrounding circuits and causing unintended short circuits.
Double-conductive copper foil tape is commonly used in communication equipment, precision instruments, and other applications with higher electrical performance requirements.
2. Storage and Application: Flexible Copper Foil Material Management That Is Often Overlooked
Copper is a relatively active metal. Even after being converted into finished adhesive tape, its long-term performance can still be affected by storage and application conditions. This is an aspect that is often overlooked during project planning.
1. Storage Environment
The tape should preferably be stored indoors in a cool, dry environment and protected from high temperatures and excessive humidity.
This helps reduce copper oxidation and discoloration. Oxidation may increase contact resistance and consequently affect grounding and shielding performance.
A first-in, first-out (FIFO) inventory management system is recommended to avoid prolonged or expired storage.
2. Bonding Surface Preparation
Before application, the substrate surface should be thoroughly cleaned to remove oil, dust, and other contaminants.
Contamination can prevent proper contact between the copper foil and the substrate, increasing contact resistance and weakening the grounding and shielding effect.
3. Bending and Handling
Although copper foil has good flexibility and ductility, repeated or excessive bending at the same location should be avoided.
Aggressive repeated bending may create microscopic cracks in the copper foil that are difficult to detect visually. These cracks can interrupt the conductive path and negatively affect shielding performance.
4.Environmental Compatibility
For applications involving long-term exposure to high humidity, salt spray, or other harsh environments, environmental simulation testing should be conducted in advance to evaluate whether the oxidation resistance and overall material performance can meet the expected service life of the project.
3. End-to-End Supply and Delivery Services from a Direct Manufacturer
With its own complete production lines and testing laboratory, Shanghai Newera provides one-stop material support for B2B customers worldwide.
Free Samples for Product Evaluation
Free samples are available, with shipping costs borne by the purchasing party. Customers can use samples for R&D, prototype development, and application evaluation before placing bulk orders.
Complete Technical and Compliance Documentation
Shanghai Newera can provide incoming material inspection reports, performance test reports, MSDS documentation, and a complete set of qualification and compliance certificates. Support is also available for factory audits and cross-border customs clearance requirements.
Flexible Specification Customization
Copper foil thickness, roll width, and roll length can be customized according to customer requirements. The company also supports various custom die-cutting and converting shapes for downstream assembly.
OEM Customization
OEM services are available, including customized product labels and outer packaging to meet the branding and packaging requirements of overseas customers.
Support for Both Small-Batch and Mass Production
Shanghai Newera supports both small-batch R&D and prototyping requirements as well as large-volume international orders. Inventory shelf life is strictly managed to help maintain stable material quality throughout the supply process.
Compared with rigid metal shielding components, the core value of conductive copper foil tape lies in its flexibility, cost efficiency, and fast implementation.
It is not intended to completely replace rigid metal shielding enclosures. Instead, it complements conventional shielding solutions by addressing shielding and grounding challenges in projects involving rapid product iterations, complex geometries, limited production quantities, or restricted installation space.
Ultimately, the actual performance of conductive copper foil tape in finished equipment is determined by multiple factors, including substrate quality, lamination and coating processes, storage conditions, and application practices.
From raw material selection to finished-product shipment, Shanghai Newera implements end-to-end quality control to provide reliable flexible metal shielding and grounding material solutions for electronics, electrical, communication, and other industrial applications.
