In B2B industrial projects across HVAC, electronics, petrochemicals, automotive, and other industries, aluminum foil waterproof tape is an important auxiliary material for ensuring the stable operation of equipment and engineering systems. Many engineering failures are not caused by problems with the main equipment itself, but by improper selection or application of auxiliary materials, such as water leakage at duct joints, failure of electromagnetic shielding, and aging or detachment of tapes used on pipelines.
Engineers and purchasing managers often face a difficult choice: low-cost tapes may have poor overall cost-effectiveness and result in high rework and maintenance costs later, while blindly selecting premium products can create unnecessary budget expenditure. Therefore, accurately matching aluminum foil waterproof tape to actual operating conditions and optimizing its application efficiency are key to scientific industrial material selection and overall cost reduction.
Shanghai Newera is a Shanghai-based adhesive tape manufacturer and exporter with more than 30 years of industry experience. The company operates an independent professional laboratory and is equipped with imported high-precision production and testing equipment, implementing strict QA/QC inspection standards.
Shanghai Newera has obtained international certifications and compliance qualifications including ISO 9001, RoHS, SGS, and REACH, and its products are exported to more than 80 countries and regions worldwide. The company offers stable production capacity, reliable quality control, and comprehensive OEM customization capabilities.

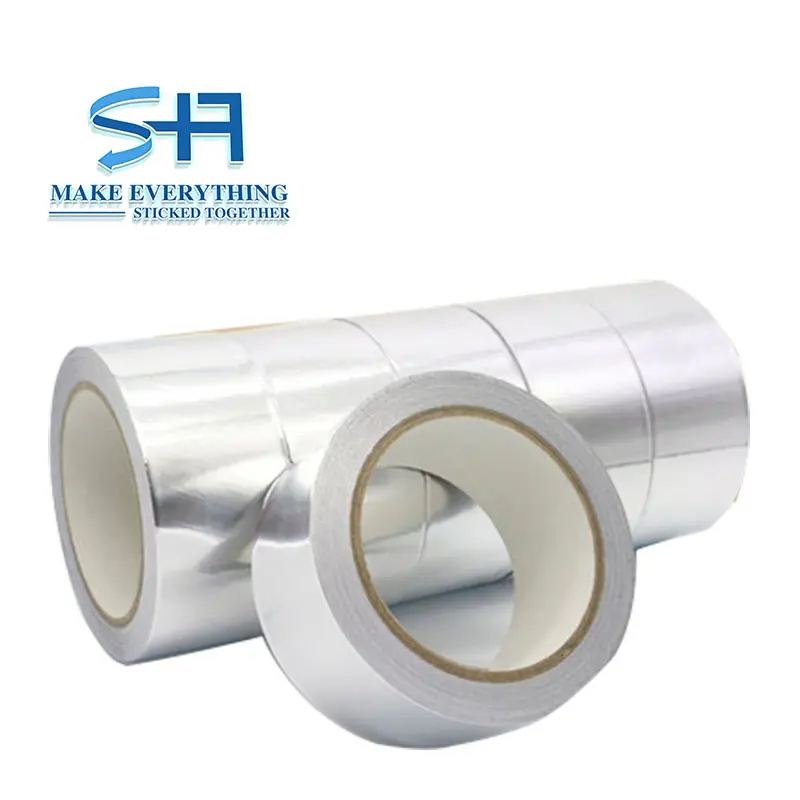

Shanghai Newera's industrial-grade aluminum foil waterproof tape is manufactured using high-quality aluminum foil substrates and solvent-based acrylic adhesive. Available thicknesses range from 0.014 to 0.75 mm, with stable mechanical and electrical performance, including a tensile strength of 40 N/cm, 180° peel adhesion of 20 N/cm, and low electrical resistance of 0.02 Ω.
Reinforced with polyester fiber, the tape provides improved resistance to repeated bending and is less prone to cracking or tearing. It combines waterproofing and vapor barrier protection, thermal insulation, UV resistance, flame resistance, and EMI electromagnetic shielding, making it suitable for complex industrial applications across HVAC, petrochemical, automotive, electronics manufacturing, infrastructure, and other sectors.
1. What Are the Key Differences Between Industrial Aluminum Foil Waterproof Tape and Ordinary Aluminum Foil Tape?
Many industrial buyers and engineers mistakenly use ordinary consumer-grade aluminum foil tape as a substitute for industrial-grade products, resulting in engineering problems such as adhesive failure, tearing, shielding failure, and premature aging.
The key differences between the two lie in the substrate formulation, adhesive system, industrial application suitability, and production quality control. These are also the most important factors to consider when selecting industrial aluminum foil tape.
Many ordinary aluminum foil tapes available on the market use low-quality thin aluminum foil combined with water-based adhesive. They are generally intended for temporary indoor applications and have limited resistance to temperature, moisture, and aging.
Such products may not be able to withstand the temperature fluctuations, humidity, vibration, and other demanding conditions commonly found in industrial environments. With prolonged use, they can become damaged or lose their functional performance.
Industrial-grade aluminum foil waterproof tape is specifically designed for B2B industrial applications. It uses customizable high-purity aluminum foil substrates and solvent-based acrylic adhesive, providing strong adhesion and excellent weather resistance.
The highly conformable material can adapt to various irregular joints and surfaces, forming a reliable waterproof and vapor barrier layer. At the same time, its excellent electrical conductivity enables EMI electromagnetic shielding, helping protect sensitive electronic equipment and reduce the risk of performance issues during production and operation.
Supported by its in-house professional laboratory, Shanghai Newera conducts comprehensive testing on every production batch, including tensile strength, peel adhesion, electrical resistance, bending resistance, waterproof performance, and aging resistance.
From raw material inspection to finished-product testing, the company implements closed-loop quality control to minimize batch-to-batch variation and prevent inaccurate or overstated specifications, providing reliable industrial-quality products for B2B customers worldwide.
2. How Should Aluminum Foil Waterproof Tape Be Matched to Different Industrial Applications for Better Performance and Efficiency?
Industrial adhesive tape selection should not be based solely on unit price. The suitability of aluminum foil waterproof tape for actual operating conditions directly affects equipment service life and maintenance costs, making application matching a critical factor in optimizing tape performance and overall efficiency.
Because operating conditions vary significantly between industries, specifications should be selected according to the specific application to achieve an appropriate balance between reliability and cost-effectiveness.
In HVAC and refrigeration applications, the tape is primarily used for sealing air ducts, air-conditioning systems, and refrigerator insulation. The key requirements are waterproofing, vapor barrier protection, and prevention of condensation and moisture penetration.
Standard-thickness grades are generally sufficient for these applications, providing a cost-effective solution while helping prevent insulation system failure.
In petrochemical and automotive pipeline applications, tapes are exposed to long-term vibration, temperature cycling, and humid environments, which can cause adhesive failure and tearing.
For these conditions, thicker tear-resistant grades are preferred. They can better accommodate dynamic movement and deformation of pipelines while providing long-term protection against heat, water, and dust in demanding industrial environments.
For OEM electronics manufacturing, electromagnetic protection is a primary requirement. With a stable low-resistance specification of 0.02 Ω, the product can effectively support EMI electromagnetic interference shielding and radiation protection.
It is suitable for protective applications involving precision electronic components and helps maintain the stable operation of electronic equipment.
As a direct manufacturer, Shanghai Newera supports OEM customization of tape thickness, adhesive layer, roll width, logo, and other specifications.
With a monthly production capacity of 3 million square meters and a monthly supply capacity of 10,000 units for individual products, the company can support product sampling, inventory preparation, and large-scale engineering procurement.
Low minimum order quantities are available for selected applications, allowing customers to work directly with the manufacturer rather than relying on intermediaries, helping achieve more stable and efficient delivery.
3. During On-Site Application, Which Factors Directly Affect the Service Life and Performance of Aluminum Foil Waterproof Tape?
Even when industrial-grade adhesive tape is selected, some companies may still experience problems such as edge lifting, adhesive failure, and water penetration.
In many cases, the underlying cause is improper installation or application.
Based on more than 30 years of industry experience, Shanghai Newera considers the final performance of adhesive tape to be strongly influenced by three key factors: substrate preparation, application procedures, and operating environment.
During installation, the substrate should be clean, dry, and free from oil, dust, and other contaminants. After application, the tape should be firmly pressed onto the surface to eliminate air pockets and ensure sufficient contact, helping prevent moisture penetration.
For outdoor applications exposed to strong sunlight, UV-resistant and flame-resistant grades can be selected to improve resistance to ultraviolet exposure and high-temperature aging, thereby extending the service life and weather resistance of the tape.
At the same time, the application limitations of the product should be clearly understood.
Aluminum foil waterproof tape is an effective waterproof and vapor barrier protection material, but it is not intended for prolonged exposure to high-pressure immersion conditions. For such applications, it should be combined with a dedicated waterproofing structure rather than being used as the sole primary waterproofing layer.
Standardized product selection combined with proper installation practices can effectively reduce rework and maintenance costs while improving the overall application efficiency of the tape.
For overseas and bulk B2B purchasing customers, Shanghai Newera has a dedicated international trade and technical service team that can provide specification sheets, test reports, certification documents, and other technical materials free of charge.
Customers can request samples for testing first and verify product performance under their own operating conditions before placing bulk orders, significantly reducing project trial-and-error risks.
In addition, Shanghai Newera works with established sea and land logistics partners to provide cost-effective, efficient, and reliable international delivery solutions for customers worldwide.
